ENV-10-1

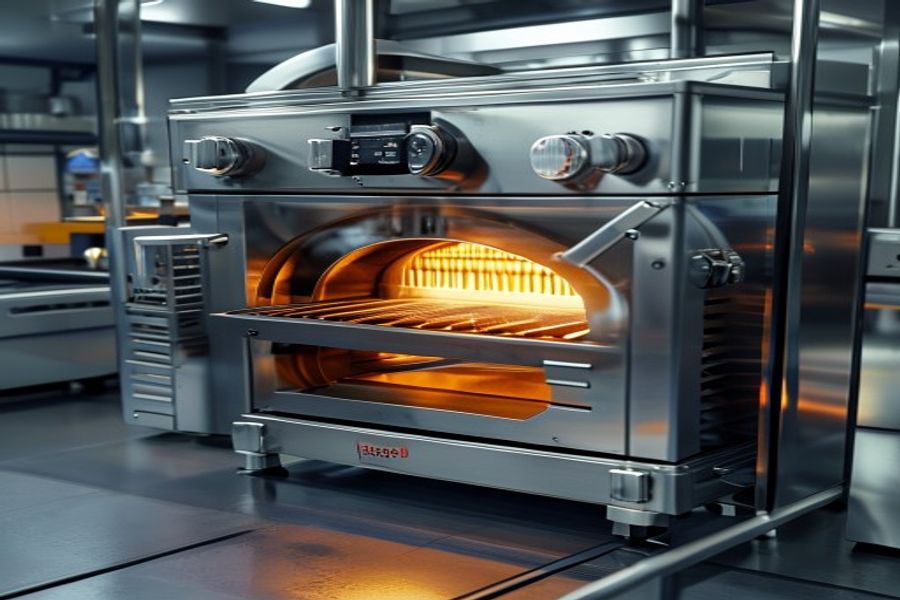

Hot Test Chamber (Hot Oven)

High-temperature steady or programmable testing from 15 degC above ambient up to 300 degC. Optional ramp / soak programmer for controlled heating profiles.

Ambient+15 degC to +300 degC +/-0.5 degC accuracy 1 degC/min ramp
Request Quote → View All Products
Hot Oven
Overview

Purpose & Application

The ENV-10-1 hot oven performs steady-state and programmable hot tests up to 300 degC. An air breather provides smooth temperature control across the working range. Choose between simple Multispan control, Eurotherm 2404 programmer or PLC-HMI base programming for step-heating, ramp profiles and time-temperature recipes per IS 9000, JSS 55555 and MIL-STD-810.

Standard Models

Available Sizes

ModelWorkspace (H x W x D)Static LoadThermal LoadShelves
ENV-10-1-125 Liters50 x 50 x 50 cm10 Kg20 W1
ENV-10-1-450 Liters75 x 75 x 80 cm25 Kg50 W2
ENV-10-1-1000 Liters100 x 100 x 100 cm50 Kg100 W2
ENV-10-1-CBCustom BuiltSpecifySpecifySpecify

We have delivered Hot Cold & Humidity Chambers up to 10 x 4.5 x 3.5 metres.

Technical Specifications

Key Specifications

Temperature Range
Ambient+15 degC to +300 degC
Control Accuracy
Better than +/-0.5 degC
Heating Rate
1 degC/min average
Sensor
Pt-100 RTD
Controller
Multispan, Eurotherm 2404 or PLC-HMI
Ventilation
Air breather for smooth control
Construction
SS 304 18-gauge interior, CRCA exterior, PU paint
Power Supply
415 V, 3-phase or 230 V, 1-phase, 50 Hz
Standard Features

Built-in Capabilities

  • Air breather for smooth temperature regulation
  • Optional Eurotherm 2404 or PLC-HMI programmer
  • Multilayer observation window with illumination
  • Adjustable shelves throughout workspace height
  • Standard port holes 50 / 100 / 150 mm
  • Caster wheels on models up to 1000 litres
  • Optional temperature data logger
  • SS 304 / CRCA construction with anti-corrosive PU paint
Safety Systems

Protection & Reliability

  • Independent over- and under-temperature protection
  • Over-current relays (OLR) and MCBs as required
  • Audio-visual alarm for critical functions
  • Door interlock and safe access design
  • Element protection at extreme set points
  • Automatic shutdown on sensor failure
