ENV-01-2

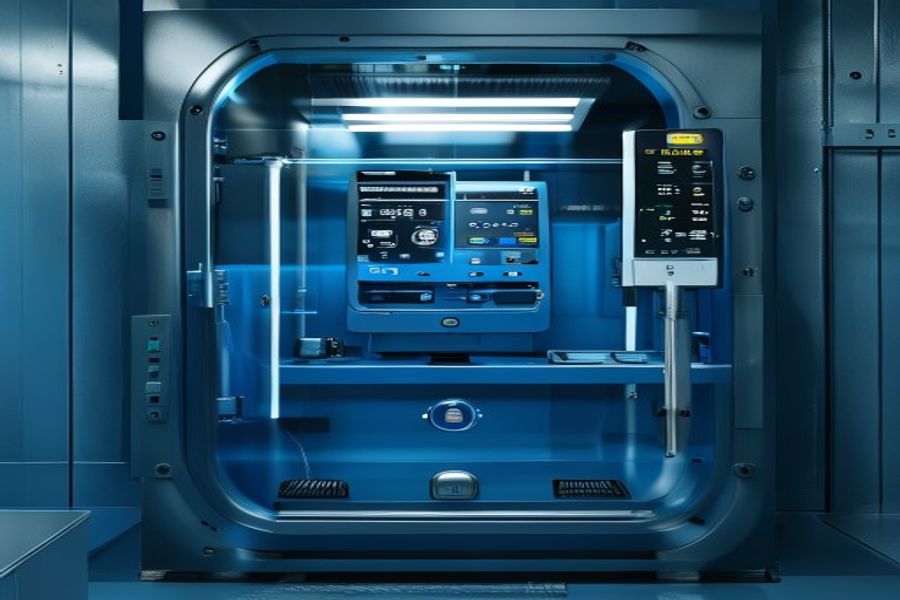

Hot & Cold Cycling Test Chamber

Carry out hot and cold cycling and steady-state tests at any temperature within specified limits with programmable ramp profiles. Meets all major national and international standards.

-73 degC to +200 degC 1 - 10 degC/min ramp Programmable cycles

Request Quote → View All Products

Overview

Purpose & Application

The ENV-01-2 chamber executes both temperature cycling and steady-state regimes within the specified envelope. Ramp rates between 1 degC/min and 10 degC/min are supported as average or linear profiles. Single-stage refrigeration is used down to -40 degC; cascade refrigeration runs below -40 degC. Selectable Eurotherm 2604 or PLC-HMI program controllers enable complex multi-segment cycles for IS 9000, JSS 55555 and MIL-STD-810 testing.

Standard Models

Available Sizes

Model	Workspace (H x W x D)	Static Load	Thermal Load	Shelves
ENV-01-2-125 Liters	50 x 50 x 50 cm	10 Kg	20 W	1
ENV-01-2-450 Liters	75 x 75 x 80 cm	25 Kg	50 W	2
ENV-01-2-1000 Liters	100 x 100 x 100 cm	50 Kg	100 W	2
ENV-01-2-CB	Custom Built	Specify	Specify	Specify

We have delivered Hot Cold & Humidity Chambers up to 10 x 4.5 x 3.5 metres.

Technical Specifications

Key Specifications

Temperature Range

-73 degC to +200 degC

Ramp Rate

1 to 10 degC/min, average or linear (specify)

Control Accuracy

Better than +/- 0.5 degC

Programmer

Eurotherm 2604 or PLC-HMI (Watlow / Eurotherm)

Sensor

Pt-100 RTD

Construction

SS 304 18-gauge interior, CRCA exterior with PU paint

Power Supply

415 V, 3-phase or 230 V, 1-phase, 50 Hz

Standards

IS 9000, JSS 55555, MIL-STD-810

Standard Features

Built-in Capabilities

Programmable ramp / soak cycles via Eurotherm 2604
Optional PLC-HMI programmer (Watlow or Eurotherm)
Multilayer observation window with internal illumination
Adjustable shelves throughout the workspace height
Standard port holes 50 / 100 / 150 mm diameter
Caster wheels on models up to 1000 litres
SS 304 interior, CRCA exterior, PU painted
Optional temperature data logger and NABL calibration

Safety Systems

Protection & Reliability

Independent over- and under-temperature protection
Motor winding over-temperature protection
High-discharge / low-suction pressure correction
Compressor trip on abnormal pressure
Over-current relays (OLR) and MCBs as required
Audio-visual alarm for critical functions
