ENV-02-2

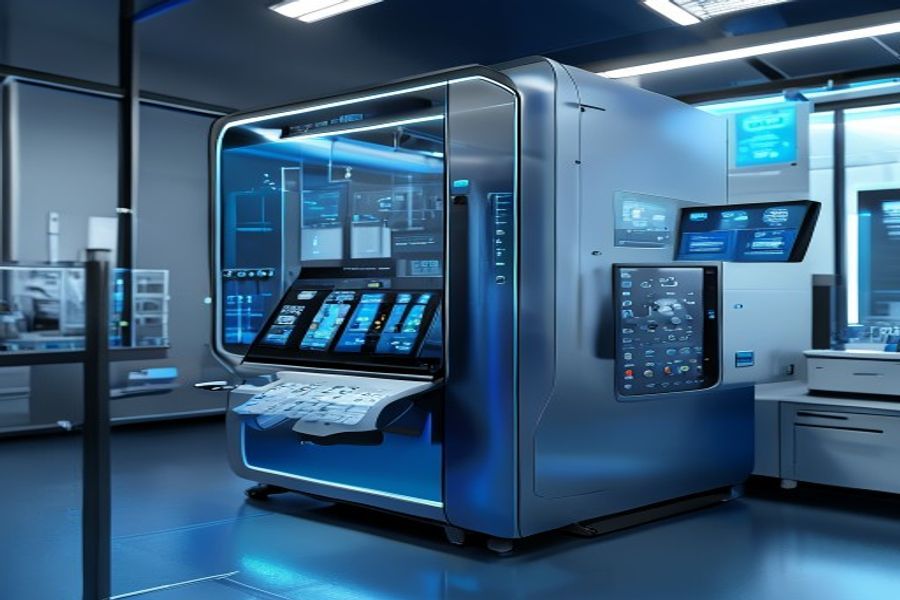

Hot Cold & Humidity Cycling Test Chamber

Programmable cycling and steady-state testing combining hot, cold and humidity profiles. Engineered for IS 9000-V/VI, JSS 55555 and MIL-STD-810 cyclic procedures.

-73 degC to +200 degC 15% to 98% RH 1 - 10 degC/min ramp

Request Quote → View All Products

Overview

Purpose & Application

The ENV-02-2 cycling chamber executes complex temperature-humidity profiles such as IS 9000-V damp heat cyclic, IS 9000-VI composite cyclic, JSS 55555 Test 17 and MIL-STD-810 cycles B1/B2/B3. Average or linear ramp rates between 1 and 10 degC/min are user-selectable. Eurotherm 2604 or PLC-HMI program control supports unlimited multi-segment recipes.

Standard Models

Available Sizes

Model	Workspace (H x W x D)	Static Load	Thermal Load	Shelves
ENV-02-2-125 Liters	50 x 50 x 50 cm	10 Kg	20 W	1
ENV-02-2-450 Liters	75 x 75 x 80 cm	25 Kg	50 W	2
ENV-02-2-1000 Liters	100 x 100 x 100 cm	50 Kg	100 W	2
ENV-02-2-CB	Custom Built	Specify	Specify	Specify

We have delivered Hot Cold & Humidity Chambers up to 10 x 4.5 x 3.5 metres.

Technical Specifications

Key Specifications

Temperature Range

-73 degC to +200 degC

Relative Humidity

15% to 98% RH

Ramp Rate

1 to 10 degC/min, average or linear

Control Accuracy

+/-0.5 degC and +/-2% RH

Programmer

Eurotherm 2604 or PLC-HMI (Watlow / Eurotherm)

Sensors

Pt-100 RTD + capacitive RH sensor

Construction

SS 304 18-gauge interior, CRCA exterior, PU paint

Standards

IS 9000-V/VI, JSS 55555, MIL-STD-810

Standard Features

Built-in Capabilities

Programmable temperature-humidity recipes (Eurotherm or PLC-HMI)
Single-stage refrigeration to -40 degC, cascade below
Low-pressure steam humidity generator
Adjustable shelves and observation window
Standard port holes 50 / 100 / 150 mm
Caster wheels on models up to 1000 litres
SS 304 / CRCA construction with PU paint
Optional NABL calibration and data logger

Safety Systems

Protection & Reliability

Independent over- and under-temperature protection
Motor winding over-temperature protection on semi-sealed compressors
High-discharge / low-suction pressure correction before tripping
Compressor trip on abnormal pressure conditions
Over-current relays (OLR) and MCBs as required
Audio-visual alarm for critical functions
Low water level protection in humidity generator
