ENV-08

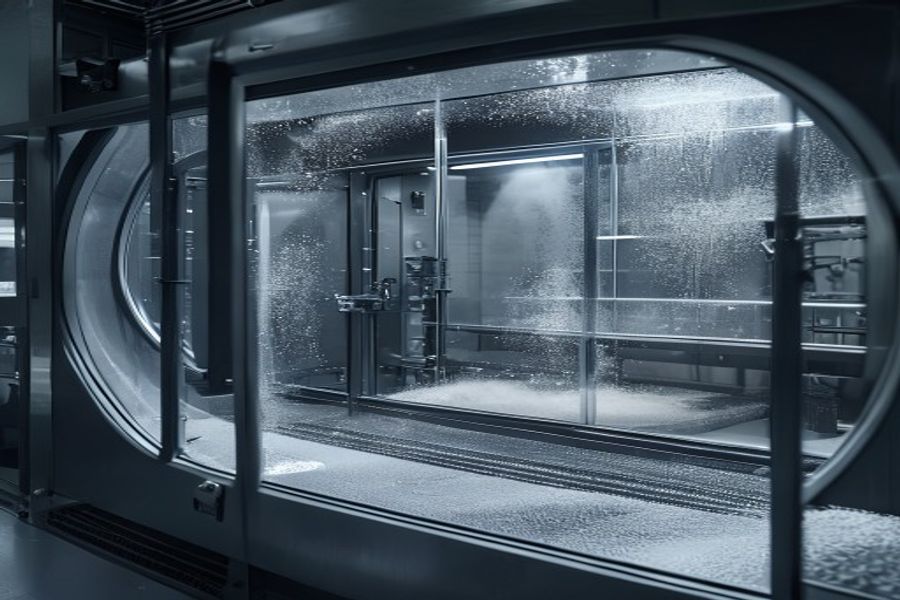

Dust & Sand Test Chamber

Verify ingress protection ratings IP5X (dust protected) and IP6X (dust tight) per IEC 60529 using circulated talc dust under controlled velocity.

IP5X / IP6X 75 micron talc 2 kg / m-cubed

Request Quote → View All Products

Overview

Purpose & Application

The ENV-08 dust chamber circulates fine talc powder (75 micron mesh) at controlled velocity and concentration to qualify enclosures for IP5X and IP6X ingress protection ratings per IEC 60529 and IS / IEC 60529. Vacuum coupling supports the under-pressure test method for category 1 enclosures.

Standard Models

Available Sizes

Model	Workspace (H x W x D)	Specimen Load	Fixture
ENV-08-500L	80 x 80 x 80 cm	30 Kg	Rotating turntable
ENV-08-1000L	100 x 100 x 100 cm	60 Kg	Rotating turntable
ENV-08-2000L	125 x 125 x 125 cm	100 Kg	Rotating turntable
ENV-08-CB	Custom Built	Specify	Specify

Stainless steel with sealed door and dust circulation blower.

Technical Specifications

Key Specifications

Dust Type

Talcum powder, 75 micron mesh

Concentration

2 kg / m-cubed

Air Velocity

0.5 to 2 m/s

Test Duration

Programmable up to 8 hours

Vacuum Coupling

For category 1 (under-pressure) testing

Programmer

Digital cycle timer with auto-stop

Construction

SS 304 sealed enclosure

Standards

IEC 60529, IS / IEC 60529 IP5X / IP6X

Standard Features

Built-in Capabilities

Circulating dust blower with controlled velocity
Programmable cycle timer with auto-stop
Vacuum coupling for under-pressure tests
Rotating turntable for specimen exposure
Acrylic observation window
Sealed door with positive lock
Easy dust drain and cleaning
Optional NABL calibration

Safety Systems

Protection & Reliability

Door interlock during dust circulation
Over-current relays and MCBs
Blower thermal protection
Dust filter on exhaust
Static-dissipative grounding of chamber
Audio-visual alarm for critical functions
